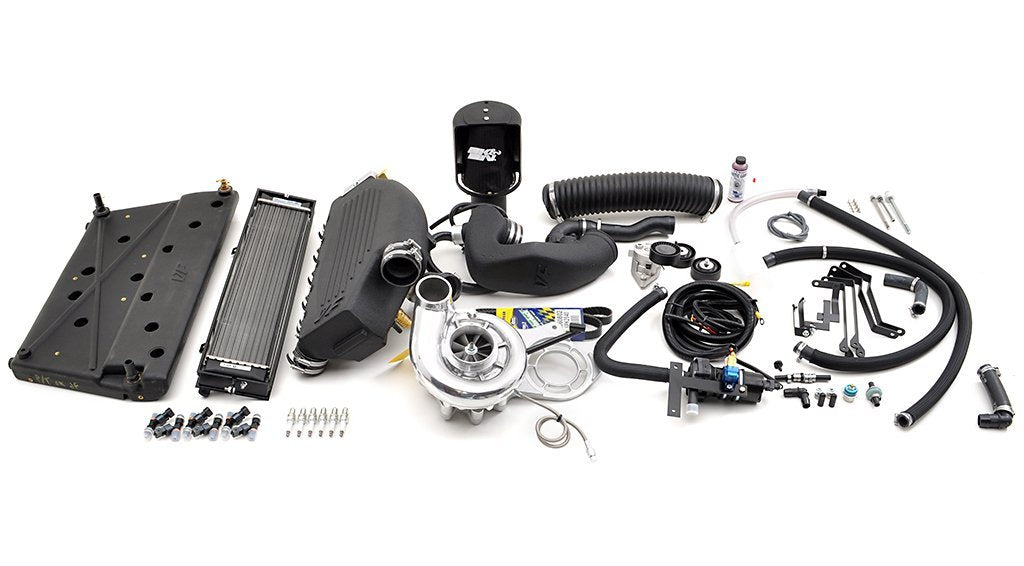

VF Engineering Supercharger Kit - BMW M3 (E46 - S54)

$0.00

Designation: BMW E46 M3 2001-2006 S54B32 3.2L in line 6
Standard Output:  333hp | 269tq
Power Gains:  26-71% HORSEPOWER  |  21-43% TORQUE
 TURNKEY "BOLT ON" SYSTEM
 FULLY REVERSIBLE

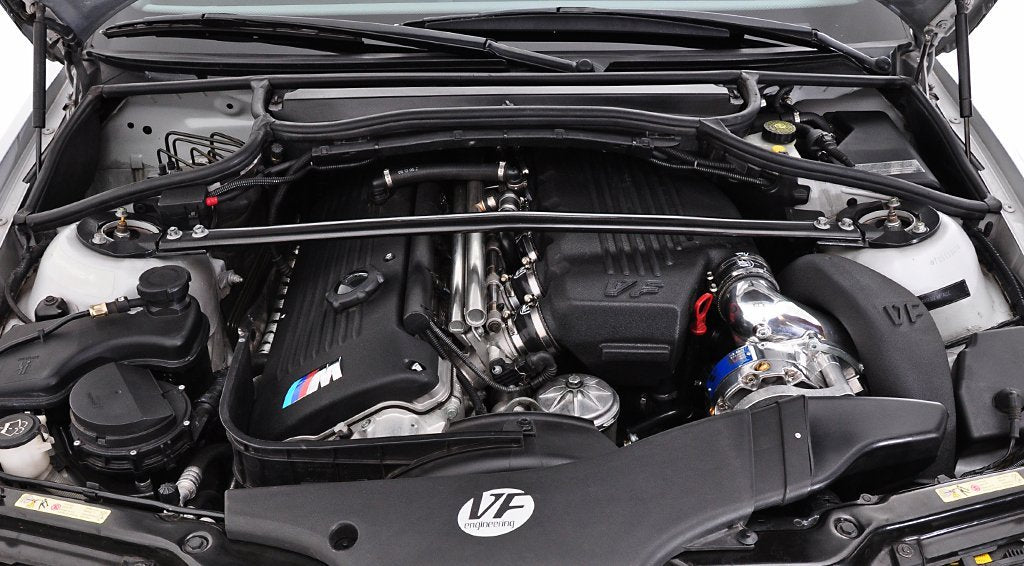

The VF-Engineering M3 supercharger for the BMW E46 S54 engine is a fully upgrade-able water cooled supercharger system. Designed to provide the most consistent charge temperatures under aggressive driving, the VF water intercooler system has a greater propensity to dissipate heat energy out of the air charge than an air intercooler.

VF use state of the art production manufacturing processes to create the highest quality supercharger kit on the market. A supercharger system designed with 4 stages of power, each stage up-gradable to the next, this piece of kit is for quality discerning enthusiasts only.

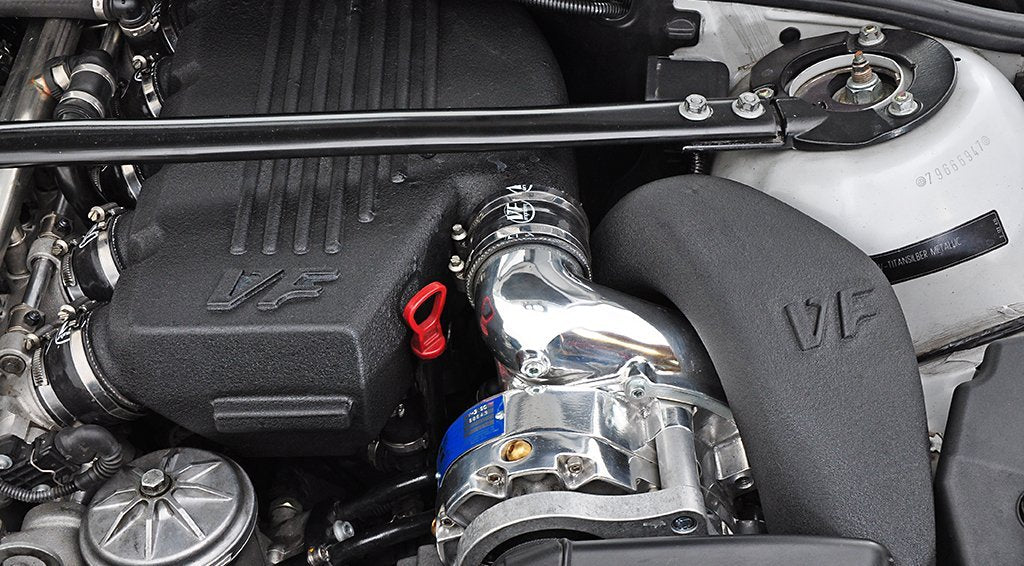

VF-Engineering chose to build this kit with the most efficient Vortech unit available – the V3 Si trim. Its super quiet helical cut gears make it super stealthy yet still remind onlookers that there is something different under the hood. The Si trim supercharger delivers a bigger mid range punch than the race “T-trim” yet is capable of supporting over 600hp.



The VF-Engineering M3 supercharger for the BMW E46 S54 engine is a fully upgrade-able water cooled supercharger system. Designed to provide the most consistent charge with the cooled water circulating through it from a custom molded water reservoir, an OEM front mount radiator and water pump. The optional “Race” version water radiator is offered for track and aggressive drivers.

The high displacement bypass valve recirculates air charge off throttle to minimize manifold pressure instantly. The bypass valve is one of the largest available valves in that frame. Mounted on a universal flange, the VF valve can be replaced with an optional “Tial” blow off valve for superb sound effects.

The fuel injectors are upgraded with high capacity Bosch EV model high-impedance rapid response fuel injectors that were carefully chosen and tested for exacting response time and ultra-precise spray pattern. These injectors match the OEM fuel pattern and provide optimal combustion and superior fuel efficiency but with significantly greater horsepower potential.



Featuring nearly twice the flow rate, these injectors are calibrated with proprietary software flashed into the ECU through the OBD2 port. The flashing can be easily performed by the installer with a programming cable and a software file emailed to you. Each power level is tuned with a specific custom-calibrated software version.
This meticulous choice of fuel injector and software integration is one of the key components in the VF supercharger system. Combined with efficiently written ECU supercharger code, the precise fuel atomization of this Bosch EV14 high flow injector allows critical fuel trimming to match the ECUs processor requests.
Ultimately it’s just one of several reasons why VF Engineering has been the gold-standard in supercharger systems for more than a decade.


System Validation and Vehicle Requirements:

  • This supercharger system was designed and validated on a stock vehicle fueled by 91 octane
  • Power gains achieved on stock motor with OEM components
  • Dyno results may vary due to environmental conditions and measurement tools
  • Prior to supercharger installation the vehicle must be programmed and operating on the stock ECU file
  • Our tuned ECU file is built on the stock read out, previously "tuned" ECUs will need to be programmed back to stock.
