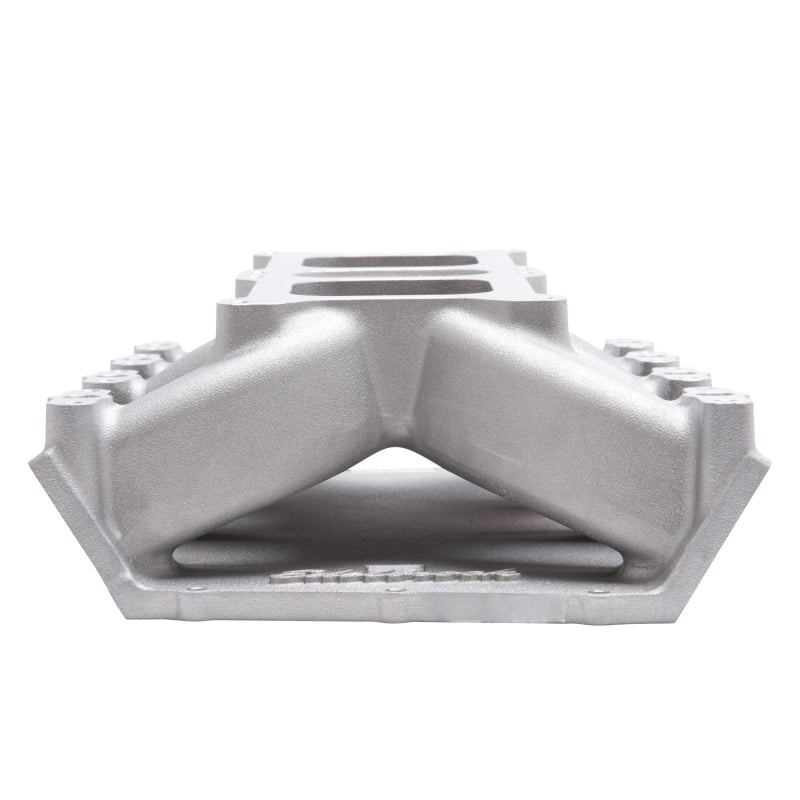

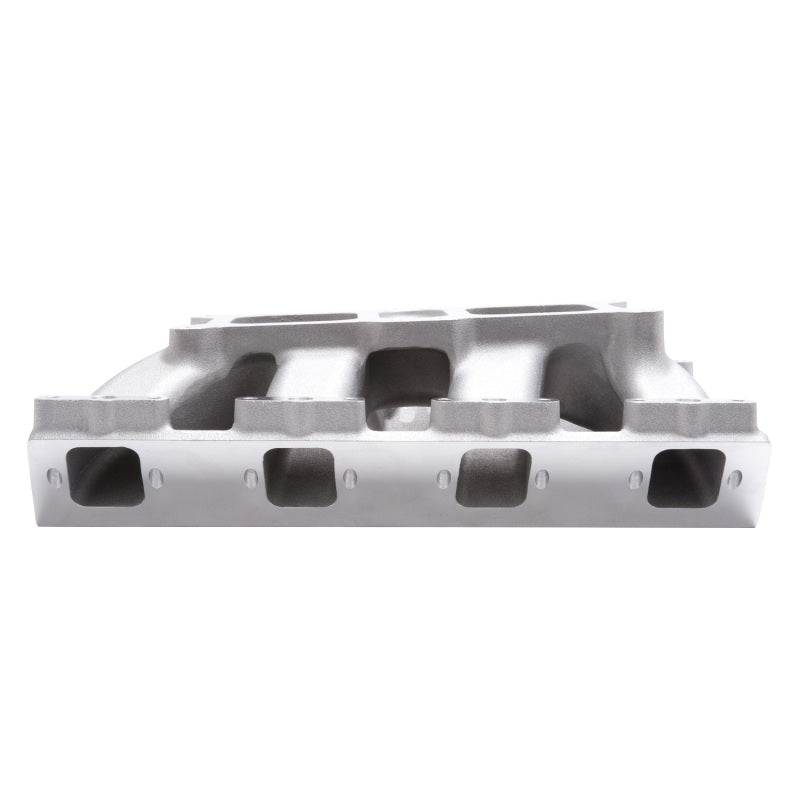

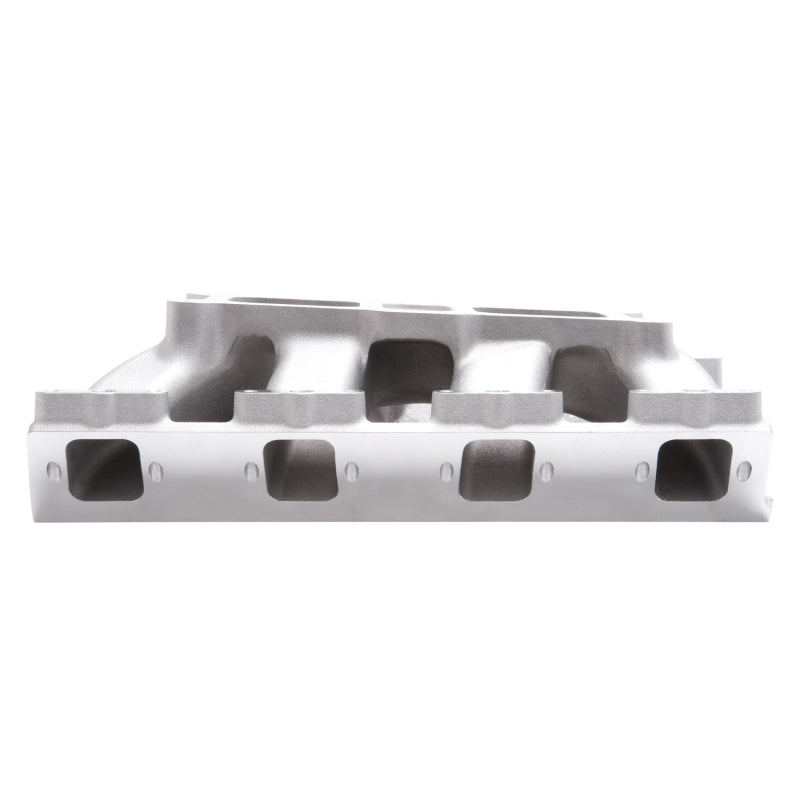

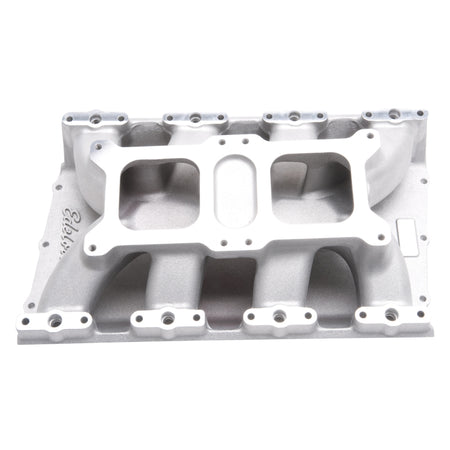

Edelbrock Intake Manifold Chrysler Gen II 426-572 Hemi Dual Quad Single Plane for EFI

$1,106.99

Sku: EDE75245
Brand: Edelbrock

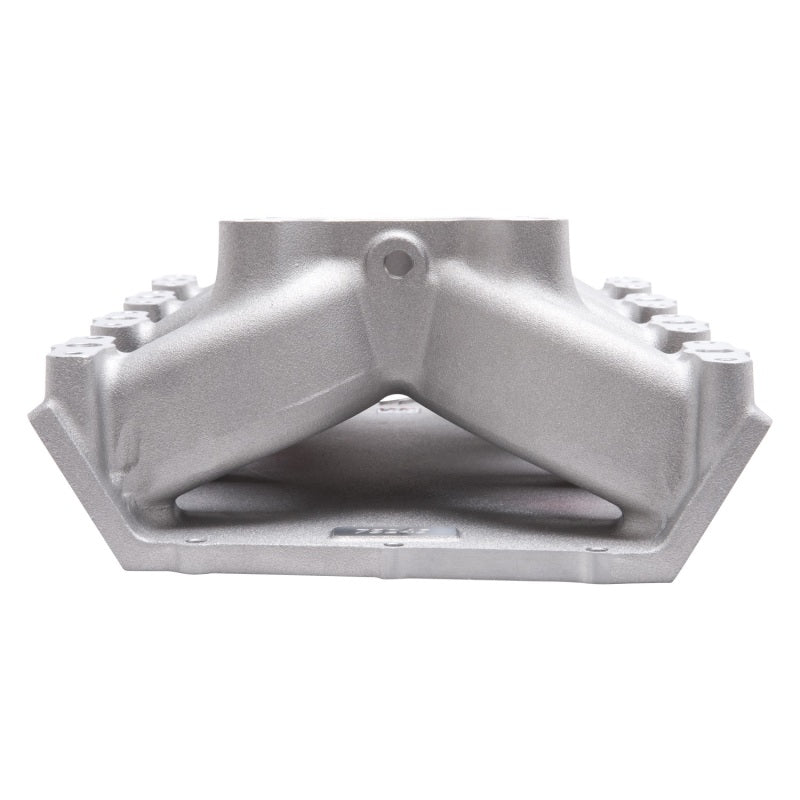

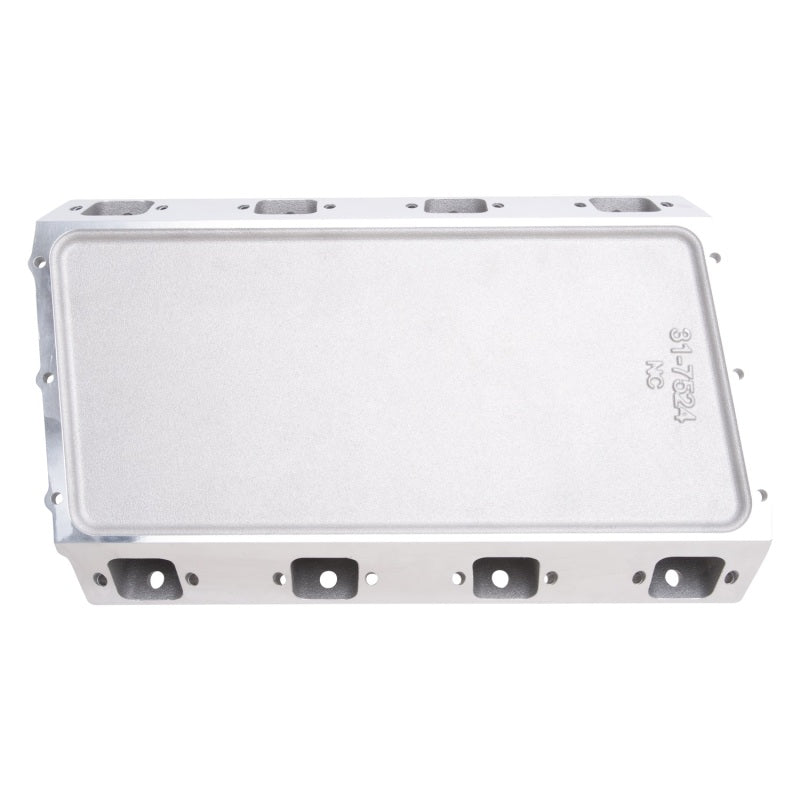

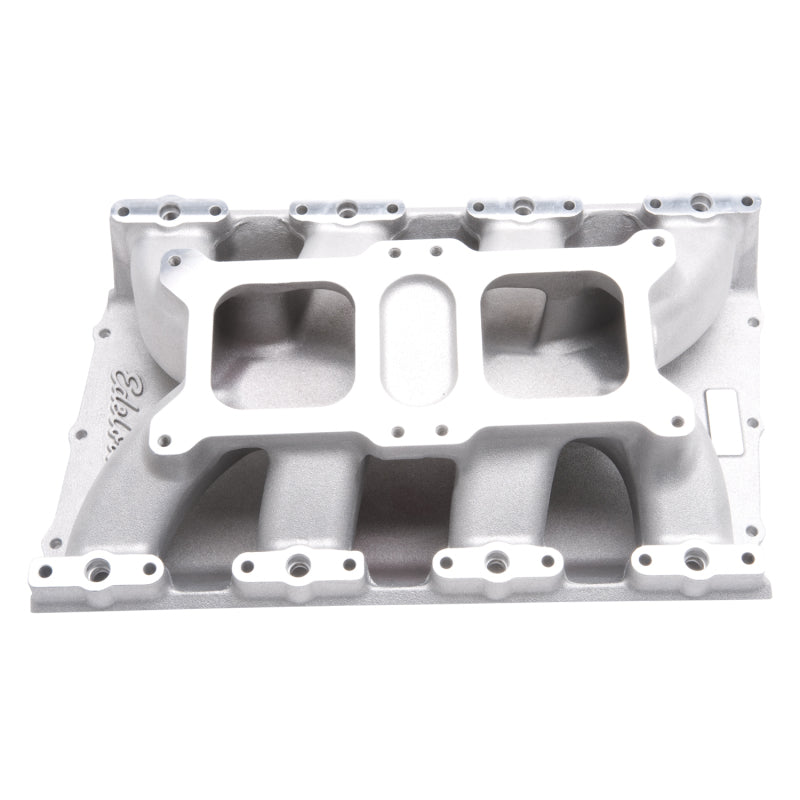

Edelbrock part #75245 Dual-Quad HEMI EFI intake manifold is intended for use with Mopar Gen II (1964-71) 426-572 HEMI engines operating in the 2,500 to 6,500+ range. This new intake manifold is a single-plane Air-Gap design with a dual square-bore 4150 style throttle body pad. Throttle body spacing and height are the same as Mopar Performance dual-quad #P5153737, making it a direct bolt-on to all vehicles with a shaker hood. The Dual-Quad HEMI is compatible with factory style cylinder heads, but optimized for use with Edelbrock Victor Jr. HEMI cylinder heads. Requires Edelbrock Coil Bracket #8079 for use with OE style coils.
Installation Instructions
Installation Instructions
Warranty

Tags: 1000-5000 , CaseLotQuantity:1 , ClearanceItem:N , Core:N , CorePrice:0 , edelbrock , Engine Components>Intake Manifolds , EPA:N/A , intake-manifolds , LTL:N , MPN:75245 , Non-CARB:Y , Prop65:Y , SpecialOrder:Y , UniversalFitment:Y
