CXRACING INTERCOOLER + PIPING KIT FOR FA20 ENGINE NA-T 2012+ SCION FR-S, SUBARU BRZ, OR TOYOTA GT86 Bolt On Fitment, Keeps Bumper and Lights. No Cut, No Relocation of Other Parts APPLICATION: -Chassis: FR-S, BRZ, GT86 -Motor: FA20 -Turbo: T3 Turbo with External Wastegate NOTE: This Intercooler Kit Is a Proprietary Design By CXRacing, Fits CXRacing's FA20 Turbo Kit or Manifold for FRS/BRZ Chassis. However, For Other Manifold and Turbo that Are Positioned Differently, Modifications Are Required, or Does NOT Fit. This Kit is for Intercooler Kit ONLY. Installed Pictures Shows other Parts of the Turbo Kit, Which Are NOT Included. We Offer Them Separately, Please Check website. Intercooler + Brackets + Piping + Silicon Hose + Clamp + BOV + Air Filter This is CXRacing's Newest Products for the Application Stated Above. All Parts Are Developed from Ground Up in Our R&D Center in USA, Designed and Built for Improved Performance Gains, with Excellent Fitment and Easy Installation. INTERCOOLERÔºö -Bar & Plate Intercooler -Core Size: 22 x 7 x 2.5 inch -Overall Size: 28 x7x 2.5 inch -2.5" Thick Core, 2.5" Inlet & Outlet PIPING: -3" Pipe Connects to Throttle Body, then Reduce to 2.5" Intercooler Pipes TURBO INTAKE: -2.75" Intake Pipe -Air Fitler is Placed In the Front Center of the Chassis, Picks Up Cold Air NOTES: -Off Road or Track Use ONLY, NOT for Street Use -Due to the Complexity of Swapping a Motor to Different Chassis, Please Make Sure You Understand the Application Stated Here is the Right Parts for Your Project |
„ÄÄ |
„ÄÄ |
„ÄÄ |
Click Below Picture to See Flowbench Test of the Intercooler: |
„ÄÄ |
„ÄÄ |
„ÄÄ |
„ÄÄ |
HIGHLIGHTS: -Especially Designed, Made for the Application Stated -Fully Tested, Simple Easy Installation -Offers Excellent Performance Gains -One of the Best Kits on the Market, with High Quality Products and Affordable Pricing |
„ÄÄ |

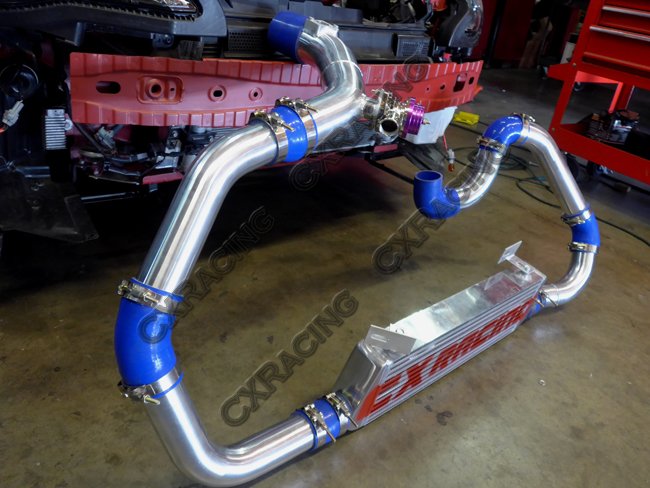

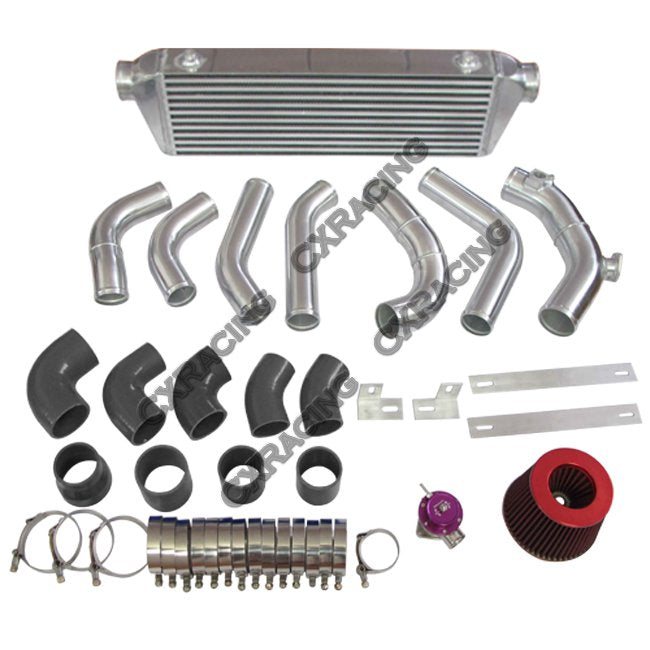

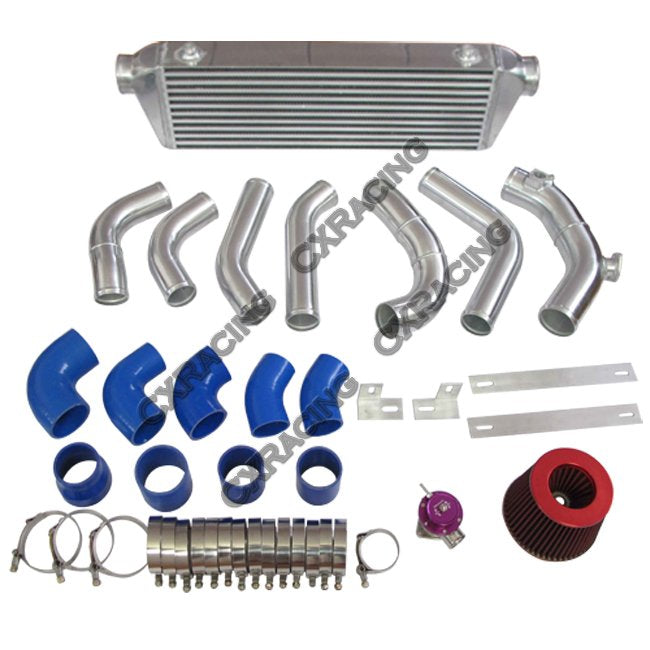

ITEM INCLUDED: -Intercooler with Mounting Brackets -Aluminum Pipes -Air Filter -BOV -Silicon Hoses and Stainless Steel T-Clamps |
„ÄÄ |

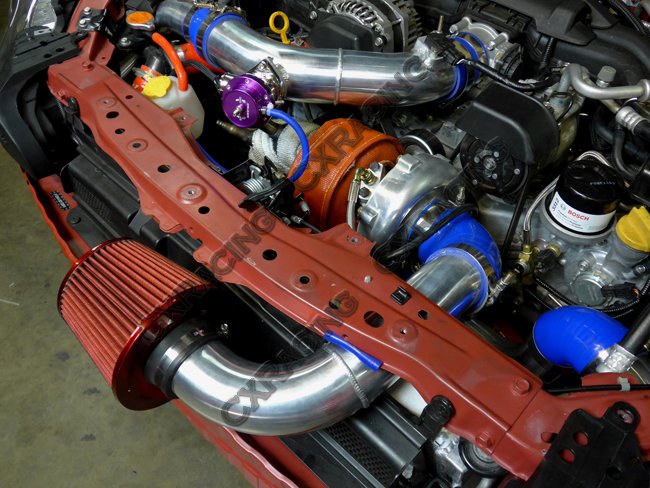

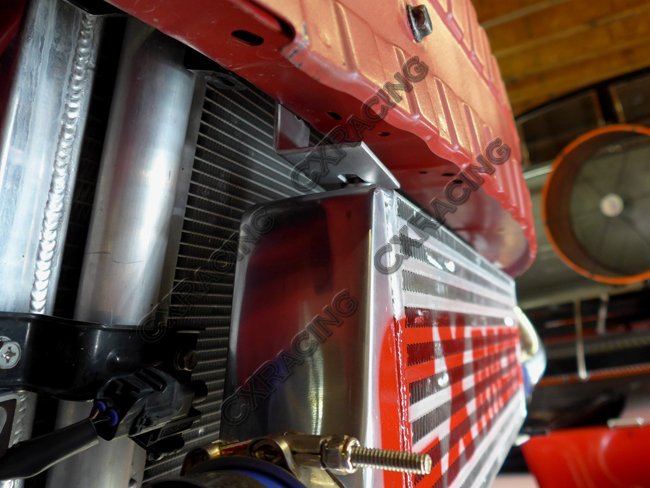

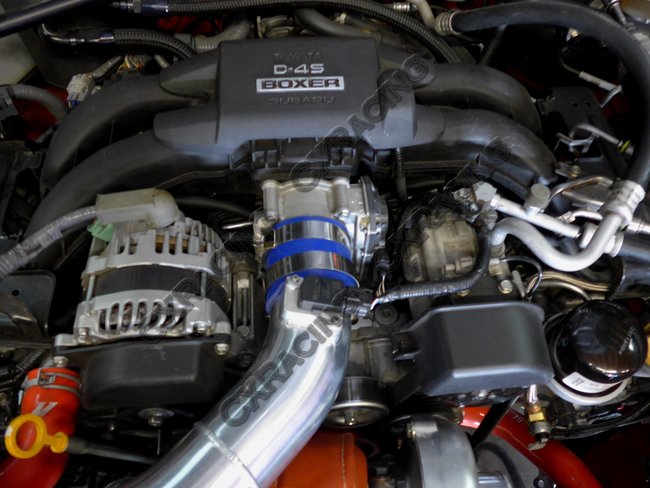

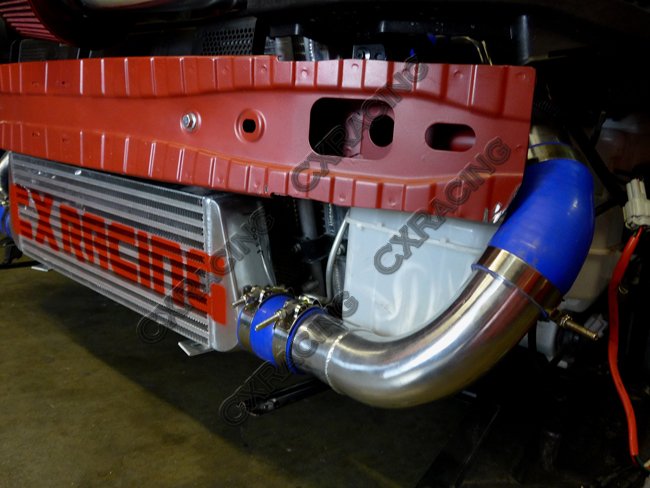

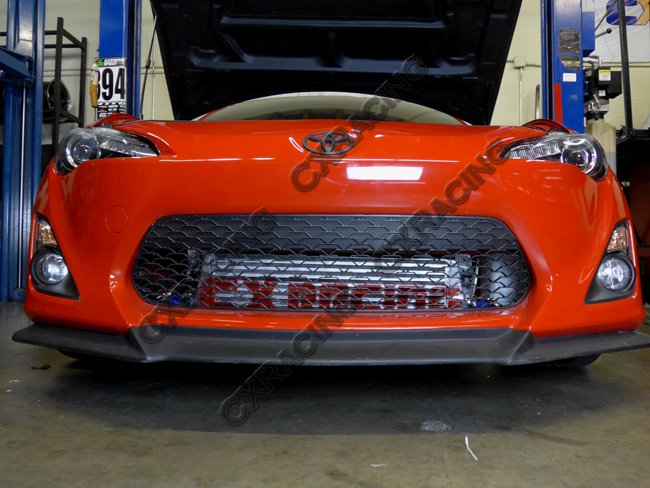

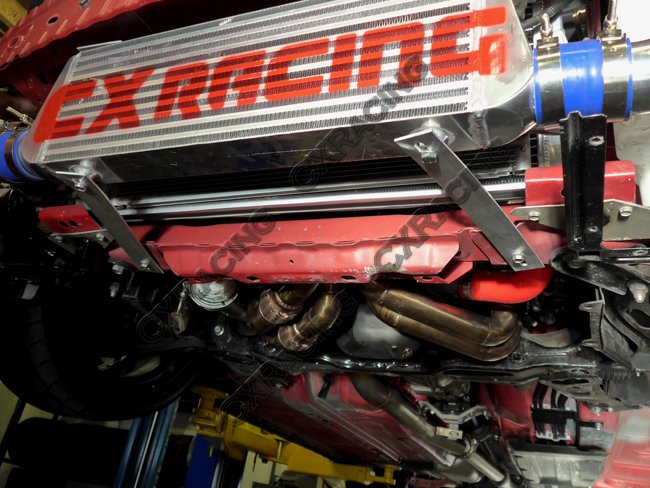

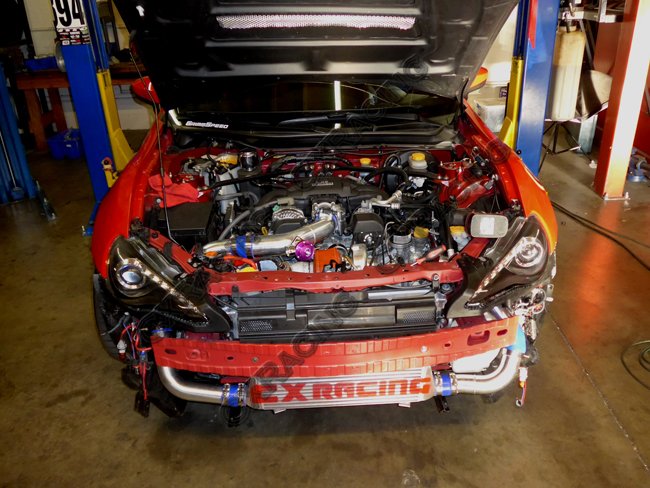

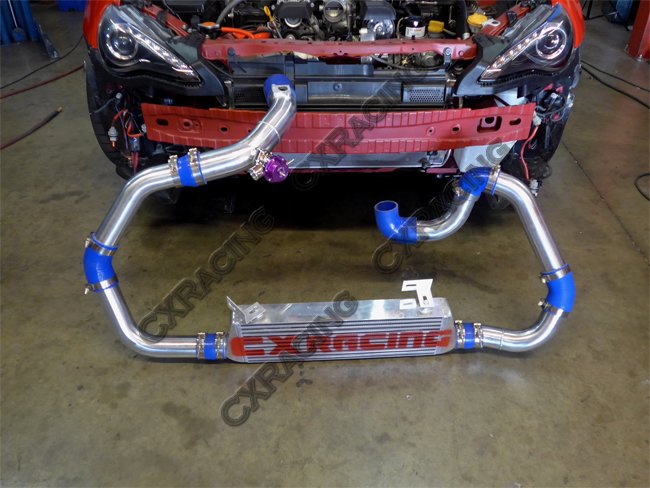

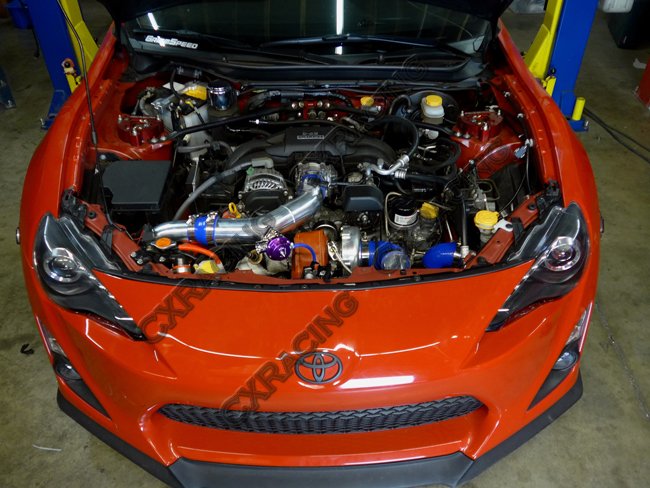

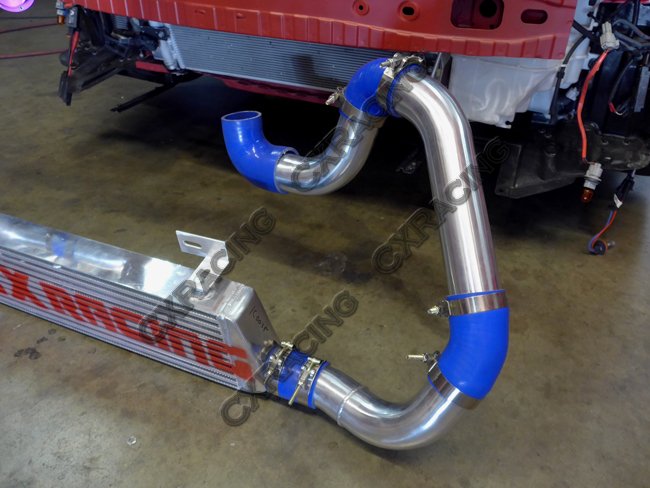

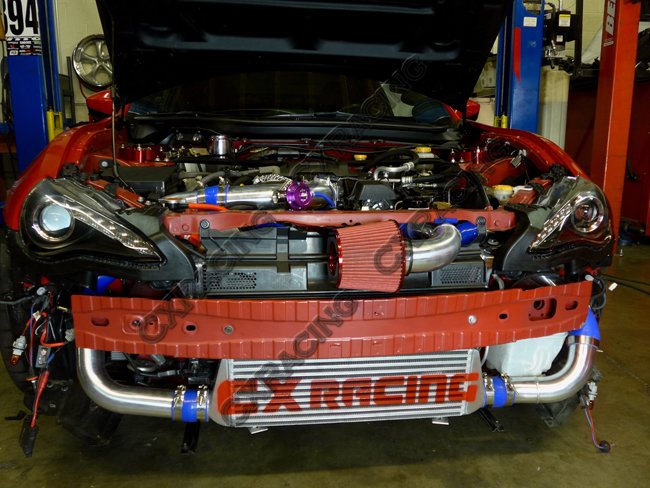

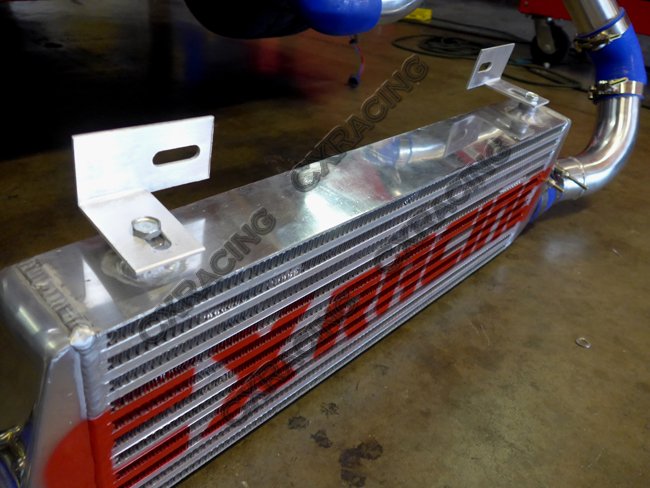

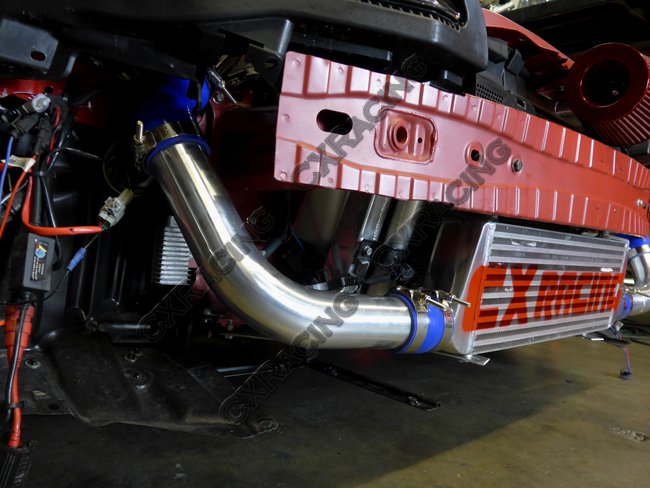

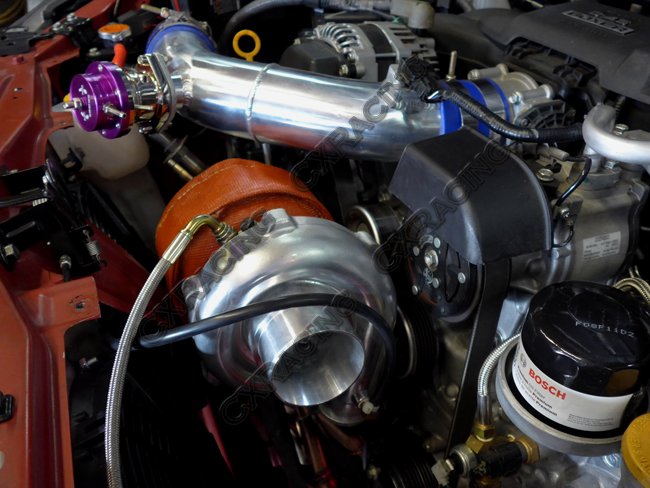

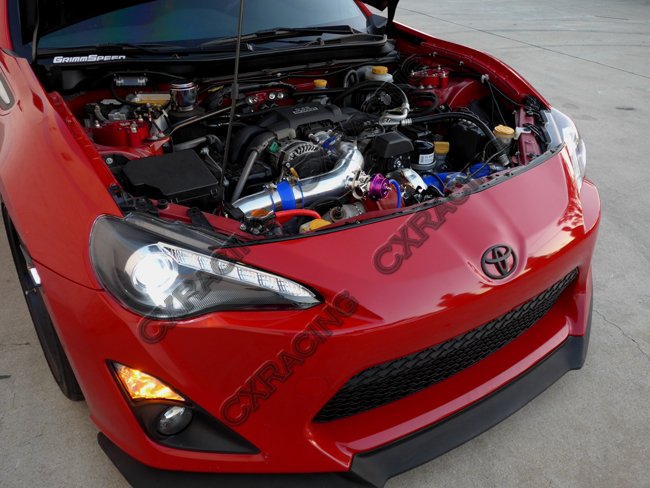

BELOW ARE INSTALLATION PICTURES: |
